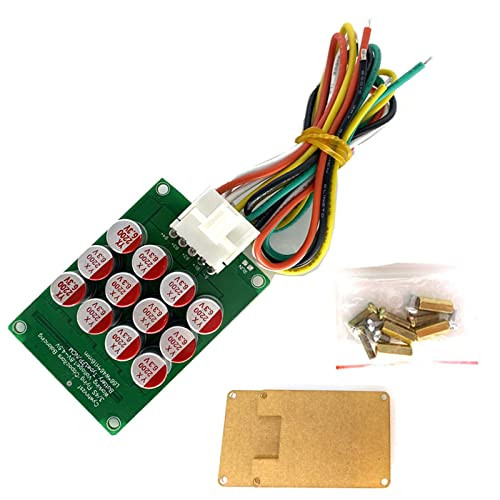

3S 4S 5A Active Equalizer Whole Group Balancer Lifepo4 Lipo Lto Lithium Active Battery Energy Transfer Equalization Capacitor
View AllClose
- [Working Voltage]: 1.8V-4.5V, suitable for NCM Ternary polymer lithium (Li-ion), lithium iron phosphate (LiFePO4). It can Not fit LTO .The quiescent current is about 9mA, and the capacity is recommended to be used between 30-200AH/Per Balancer.Working environment temperature 0-60 degrees.
- [Working Principle]: Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the , and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB.Equilibrium current 0-5.5A, the more balanced the , the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv.
- [Sleep Protection];With under-voltage sleep protection, the voltage will automatically stop entering the sleep state when the voltage is lower than 2.7V, and the standby power consumption is less than 0.1mA.
- [No Need External Power ]:no external power supply is required, and the internal energy transfer of the is used to transfer and the entire set batteries pack in balance .Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the pack are correct, and do a good job of insulating the bottom of the board and the string connection terminals. Otherwise, it will short-circuit and burn the board.
